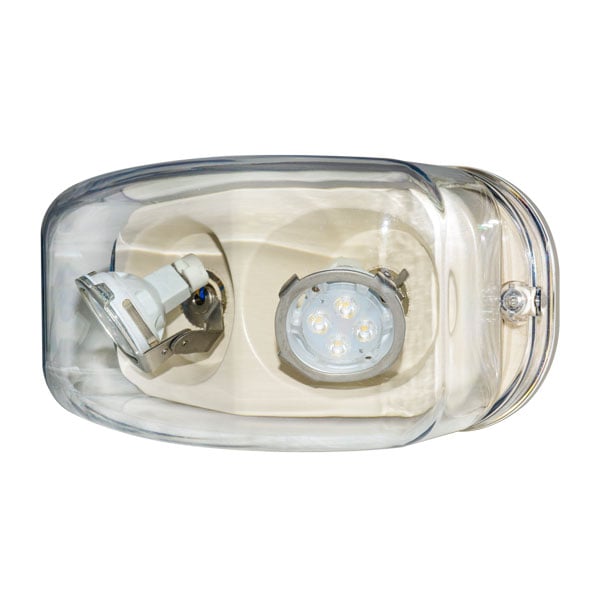

SWNX
HAZARDOUS LOCATION REMOTE
The SWNX series for hazardous locations remotes is designed to perform in extreme environments. The single or double lamp assemblies are completely protected from the elements within a fully gasketed polycarbonate housing. Available in 6 V, 12 V or 24 V models, LED (bi-pin based) lamps.
- Fully gasketed polycarbonate housing
- Fully adjustable – both tilt and swivel
- Single or double lamp
- Universal spider knockout pattern stamped into backplate for junction box mounting
- White color is standard, black is optional
- Class I, div 2, groups A, B, C, D
- Class II, div 2, groups F, G
- Class III, div 2
Quick Ship
No
Lamp Type / Light Source
LED
Casting/Housing Color
White,
Black
Environment
Wet,
Hazardous
Lumen Output Range
301-400 Im,
401-500,
501-600,
601-700
Material
Polycarbonate
Number of Lamps
2
Product Type
Remotes
Ratings
Class I Division 2,
IP66,
NSF,
NEMA 4X,
Class II Division 2,
Class III
Voltage
6-24V,
12-24v
Wattage
6 W,
4 W,
7 W,
5 W
