FN-L GEN. 2

FN-L GEN. 2

4' LED SPECIFICATION GRADE VAPOR TIGHT HIGH BAY IP67, WITH NSF AND NEMA 4X

The FN-L is an IP66, IP67, NSF rated for use in for both indoor and outdoor applications. Ideal for refrigerated storage, food processing facilities, commercial kitchens, beverage and bottling facilities, industrial facilities, exterior retail, parking garages, and gymnasiums.

This luminaire meets BC Hydro requirements, thus providing considerable utility rebates in British Columbia.

Information and Downloads

Document Title Download Email

Overview

  • ApplicationIndustrial, Commercial

  • MountingSurface, Suspended

  • Lamp Type / Light SourceLED

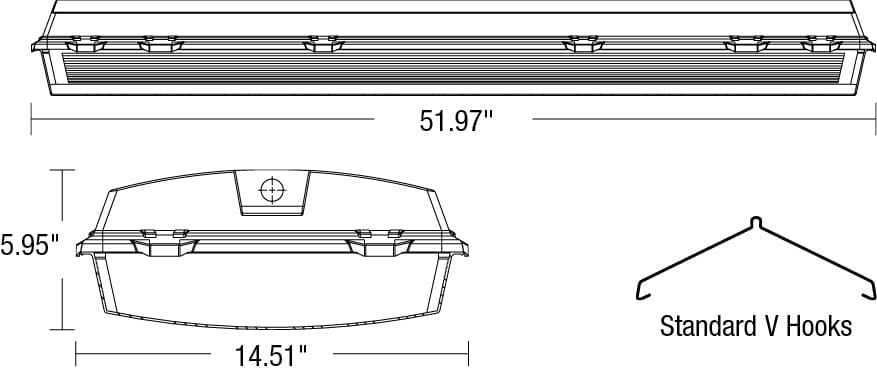

  • Size52"

  • MaterialFiberglass

  • Casting/Housing ColorWhite

  • DimmableYes

  • Wattage77 W, 107 W, 123 W, 179 W, 205 W

  • Voltage120 V, 120-277 V, 347 V

  • Color Temperature3000K, 3500K, 4000K, 5000K

  • Lumen output range12 001-14 000, 14 001-16 000, 16 001-18 000, 18 001-24 000, 24 001-30 000, 30 001-40 000

  • QualificationDLC Premium

  • RatingsIP66, NSF, NEMA 4X, IP67

  • EnvironmentWet, Damp

  • Product TypeVapor Tight, High Bay

  • Dimming0-10V

  • CRI80, 90
