FN
4' FLUORESCENT SPECIFICATION GRADE VAPOR TIGHT HIGH BAY, 4 AND 6 LAMPS, 40°C, IP67, NSF, NEMA 4X
The wide profile vapor tight fluorescent high bay is our IP67, NSF gasketed enclosure for wet or dusty locations. Appropriate for those applications that may require: washability/hose down, complete containment of the lamps, the ability to withstand reduced temperatures and withstand moderate impact. Ideal for food processing facilities, commercial kitchens, breweries, industrial facilities, livestock containment buildings, parking garages, under awnings, laundries, utility tunnels and car washes.
Housing:
Gear trays are die-formed from cold-rolled steel with a minimum 87% total reflectance or achieve 94% reflectivity with our optional MIRO 4 reflector. There are 12 stainless steel latches provide durability and chemical resistance. The clear lenses are made of 100% impact-resistant acrylic for maximum light transmission and longevity or UV stabilized Polycarbonate for temperature extremes and maximum impact resistance.
Mounting:

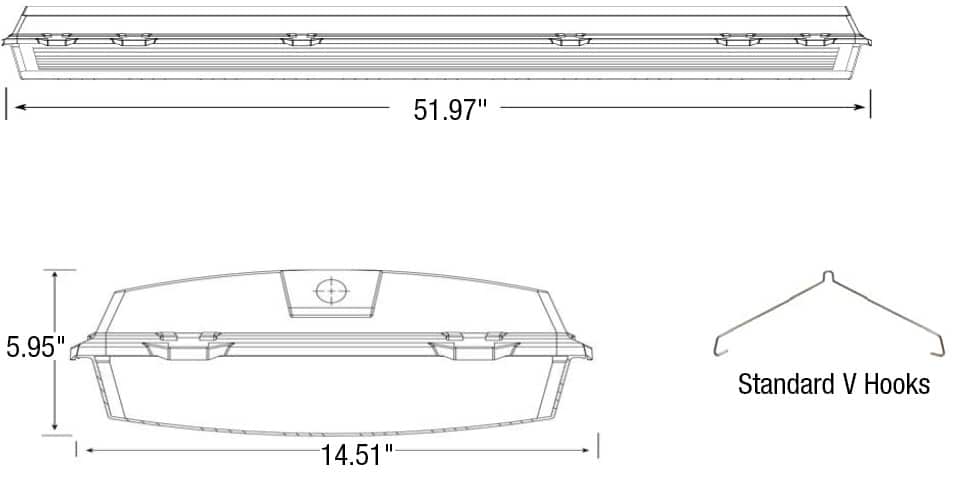

Easily mounted with V-hooks which come standard with the fixture. The stainless steel V-hooks with hook hangers are UL rated for 4 times fixture weight.
Application
Industrial,
Commercial
Casting/Housing Color
White
Environment
Wet,
Damp
Lamp Type / Light Source
Fluorescent T5,
Fluorescent T8,
Fluorescent T5HO
Material
Fiberglass
Mounting
Surface,
Suspended
Number of Lamps
4,
6
Product Type
Vapor Tight,
High Bay
Ratings
IP66,
NSF,
NEMA 4X,
IP67
Size
52"
Voltage
120 V,
120-277 V,
347 V
Wattage
54 W,
28 W,
32 W
