HXX-L
DECORATIVE SUSPENDED LED HIGH BAY WITH 12" REFLECTOR
Family of decorative suspended LED luminaires for general illumination in medium to high ceiling applications such as offices malls and retail spaces where long life and energy efficient LED operation is desirable.
Housing
Extruded and anodized aluminum housing.
Reflector
The prismatic frosted UV-stabilized 12" reflector is a practical and aesthetic solution for public areas. The acrylic reflector produces a soft, diffused glow to put the right light in the area.
Mounting
Junction box with a hook.
Application
Commercial,
Deco
Casting/Housing Color
Silver
Color Temperature
4000K,
3000K,
2700K,
3500K
Dimmable
Yes
Environment
Damp
Lamp Type / Light Source
LED
Lumen Output Range
3 001-4 000
Material
Aluminum
Mounting
Suspended
Product Type
High Bay
Reflector
Frosted acrylic
Shape
Round

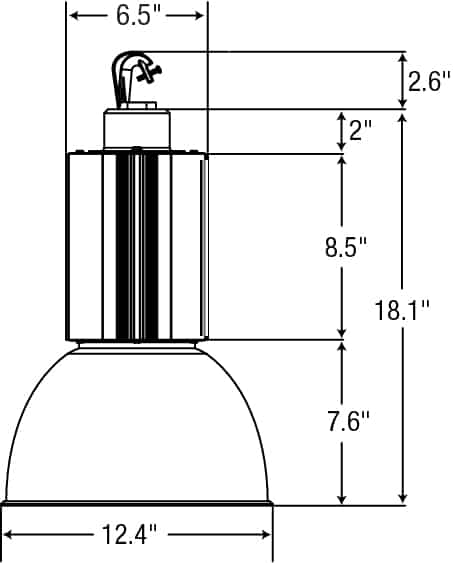

Size
12"
Voltage
120-277 V,
347 V
Wattage
36.5 W
