CDF-L
LED Hazardous Location Flood Luminaire
The CDF-L Hazardous Location LED flood luminaire is designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or in NEMA 3 and 4X locations where wind, water, snow or high ambient can be expected. The CDF-L is also NEC/CEC certified to be used in hazardous environments where there is presence of flammable vapors or gases and combustible dust.






Application
Industrial,
Commercial,
Hazardous

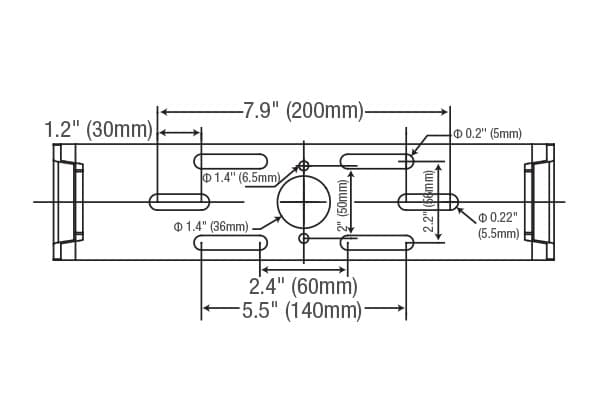

Mounting
Ceiling mount,
Wall mount,
Pole mount,
Pendant
Lamp Type / Light Source
LED
Size
12.9''
Casting/Housing Color
Grey
Color Temperature
4000K,
5000K,
3000K
Environment
Wet,
Hazardous
Lumen Output Range
6 001-8 000,
8 001-10 000,
10 001-12 000,
12 001-14 000,
14 001-16 000,
16 001-18 000,
18 001-24 000
Product Type
Flood Light
Ratings
Class I Division 2,
Class I Division 1,
Class II Division 2,
Class III
Shape
Rectangular
Voltage
120-277 V,
347 V
Wattage
100 W,
150 W,
80 W
