New Product

T8 - TYPE A + B

BALLAST COMPATIBLE AND BALLAST BYPASS LED TUBE WITH 5 CCT SELECTABLE

The LED T8 Standard 5 CCT Selectable Type A+B lamps offer a versatile retrofit solution for replacing T8 fluorescent lamps. They provide two flexible installation methods: operating with the existing fluorescent ballast (Type A) or bypassing the ballast and wiring directly to line voltage (Type B).

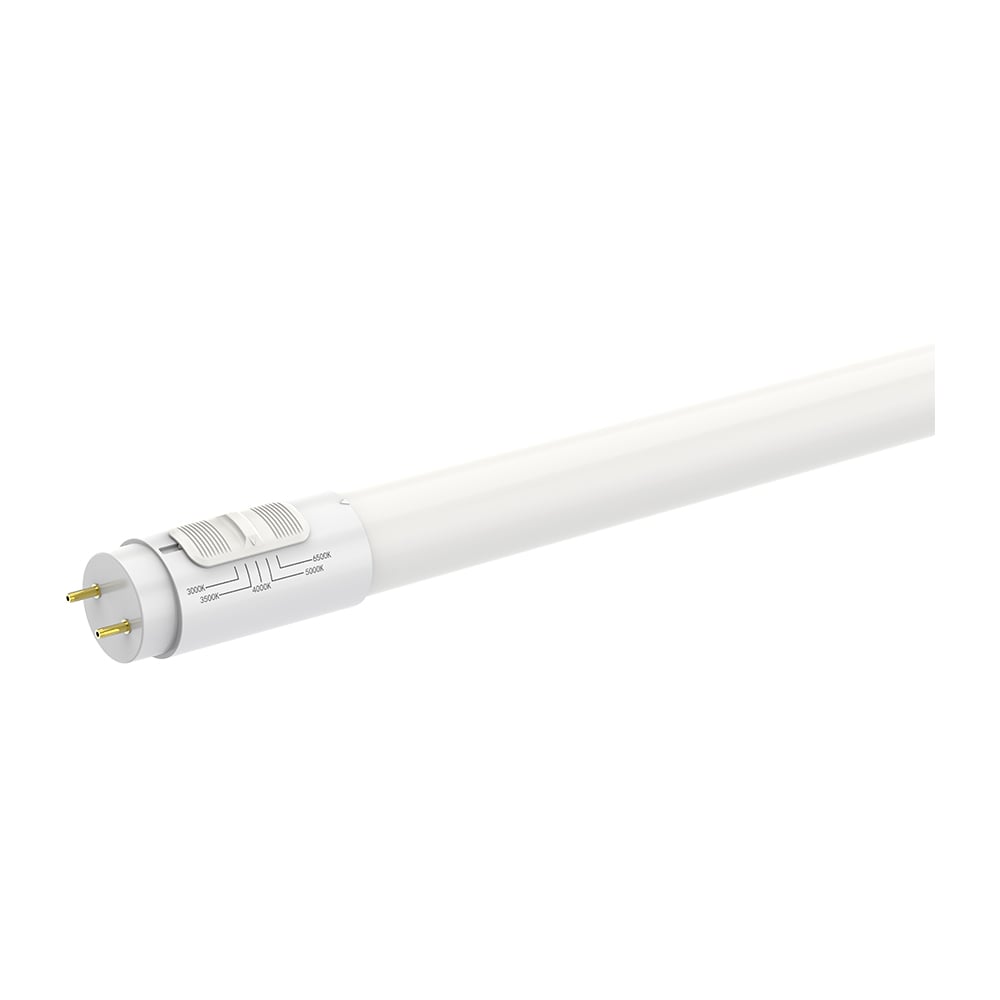

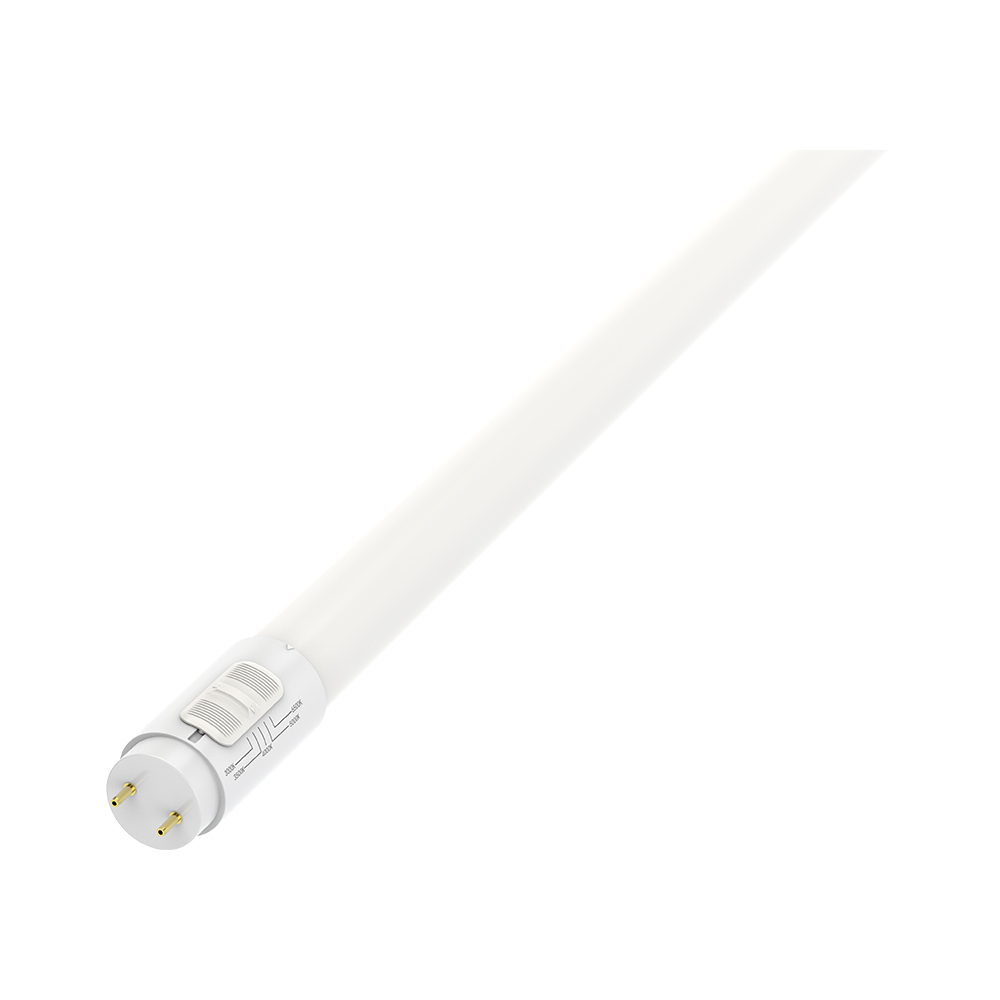

5 CCT Select

5 Year Warranty

Damp location

DLC

Contact Us Download T8 - TYPE A + B Spec Sheet

Shape

T8

Dimmable

Yes

Wattage

8 W, 12 W, 14 W

Voltage

120-347 V

Color Temperature

3 000/3 500/4 000/5 000/6 500 K

Environment

Damp

Base

G13

CRI

82

Brand

Standard

Installation Method

Ballast Bypass, Ballast Compatible

Lumens (Lm)

1 160, 1 560, 1 900

Maximum Overall Length MOL

602.8 mm (23 3/4 in), 907.6 mm (35 3/4 in), 1212.4 mm(47 3/4 in)

Safety Coating

Yes

Spec Sheet

Sell Sheet

Installation
