SLD

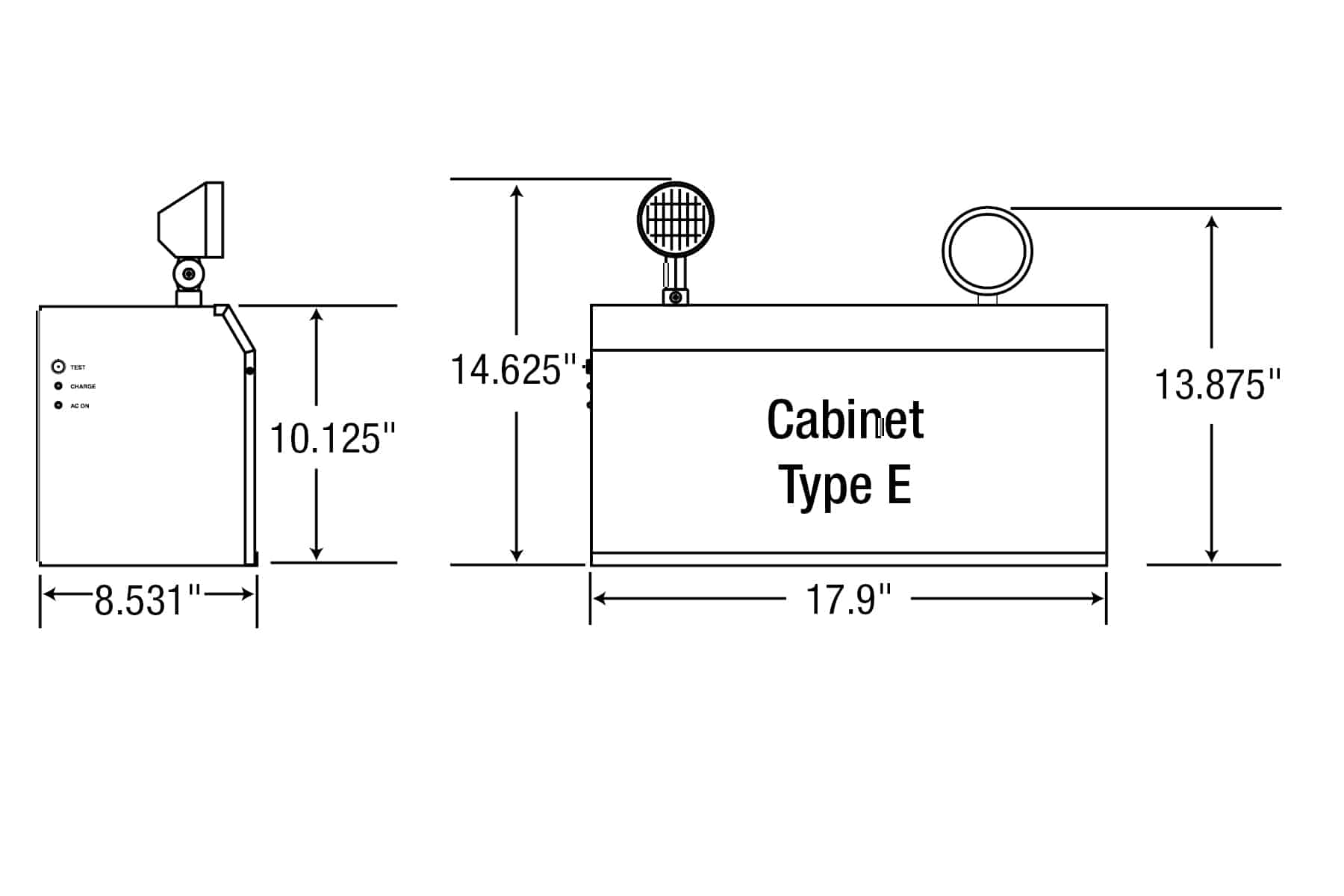

The SLD series of commercial steel battery units is designed to provide efficient and reliable emergency lighting. Utilizing a sturdy, all steel housing, the SLD presents a modern and unobtrusive design. On higher capacity models, the cabinet front is sloped to allow better internal access and superior low angle light distribution.

The SLD can also accommodate a wide variety of options, including auto-testing self-diagnostics and remote testing.

LED lamps have a limited lifetime warranty

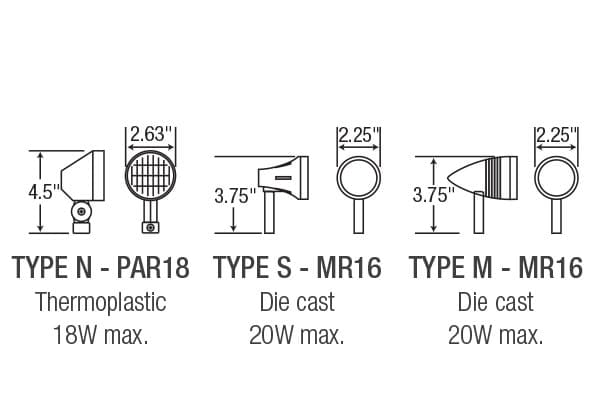

• Lamp heads include PAR18 small style and die cast metal MR16 type
• 6VDC or 12VDC emergency power output versions (as specified)
• Wattage capacities from 18 to 720 W
• 30 Minutes emergency power duration standard
• 120/347 VAC 60 Hz input, field selectable
• High efficiency, rapid recovery, precision control charging system
• Momentary push button test switch
• Diagnostic/pilot LED for AC ON and CHARGE
• Fully automatic, current limiter charger − Line latched, low voltage protection
• Brownout and short circuit protection
• Maintenance free, sealed lead acid battery
• 18 Gauge Steel White powder coat finish standard
• CSA Certified to C22.2 141-15
