SLBFN
WEATHER-PROOF BATTERY UNIT

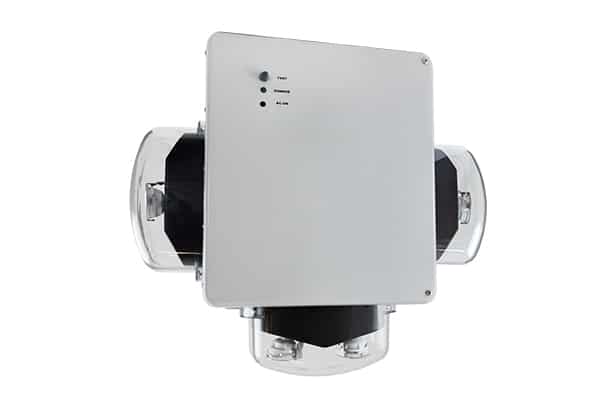

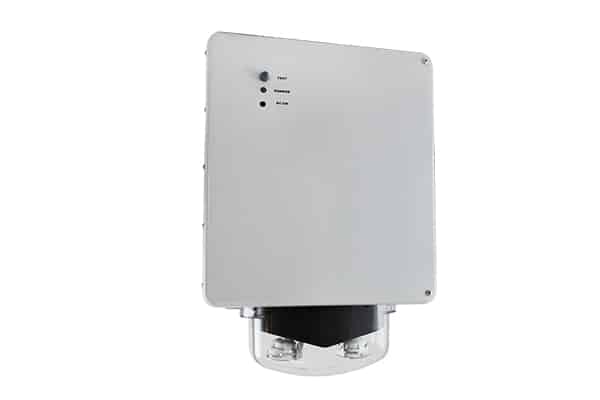

The SLBFN series of NEMA4X and EEMAC4X rated weatherproof battery units is designed to operate in the most extreme environments. The fully gasketed, reinforced, non-metallic housing features a hinged cover that secures with durable screw locks. Supplied with wet location anti vandal heads designed to perform in extreme environments, they are completely protected from the elements within a fully gasketed polycarbonate housing.
120/347 VAC or 277 VAC, 60Hz InputHigh efficiency, rapid recovery, precision control charging systemMomentary push button test switchDiagnostic/pilot LED for AC ON and CHARGEFully automatic, current limiter chargerLine latched, low voltage protectionBrownout and short circuit protectionMaintenance free, sealed lead acid batteryNon-Metallic Housing, grey finish standardHeads Polycarbonate enclosure fully gasketed to prevent water infiltrationCSA Certified to C22.2 141-15
Casting/Housing Color
Grey
Lamp Type / Light Source
LED
Material
Polycarbonate,
Fiberglass
Mounting
Wall mount
Number of Lamps
1,
2,
3
Output Power
200,
250,
320,
350,
550,
720,
100,
72,
144,
160,
180
Product Type
Battery Units
Ratings
NEMA 4X
Voltage
24 V,
6 V,
12 V
Wattage
6 W,
4 W,
7 W,
5 W
