SLB

Steel Battery Unit

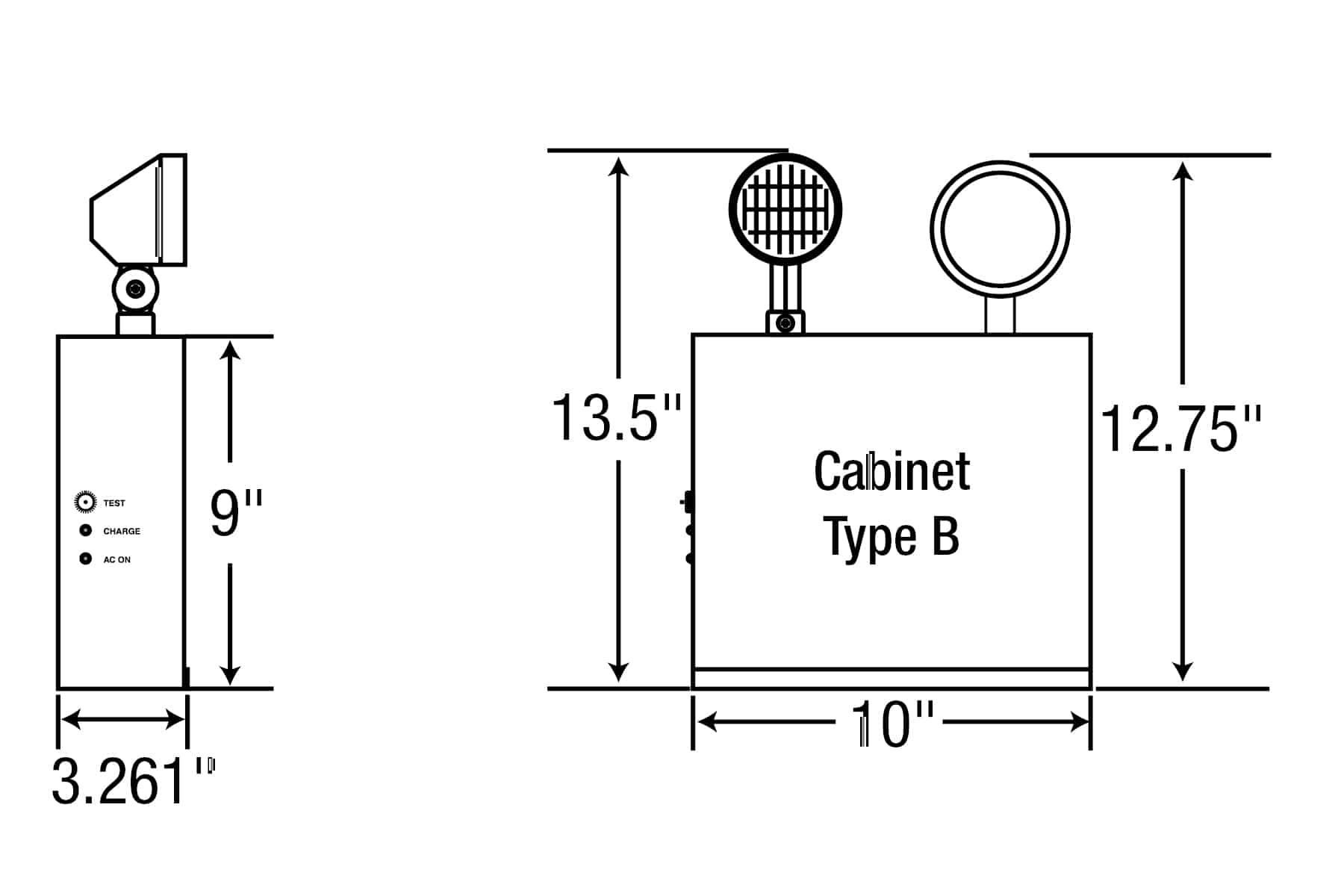

The SLB series of commercial steel battery units is designed to provide efficient and reliable emergency lighting. Utilizing a sturdy, all steel housing, the SLB presents a modern and unobtrusive design. On higher capacity models, the cabinet front is sloped to allow better internal access and superior low angle light distribution. The SLB can also accommodate a wide variety of options, including auto-testing self-diagnostics and remote testing. LED lamps have a limited lifetime warranty.

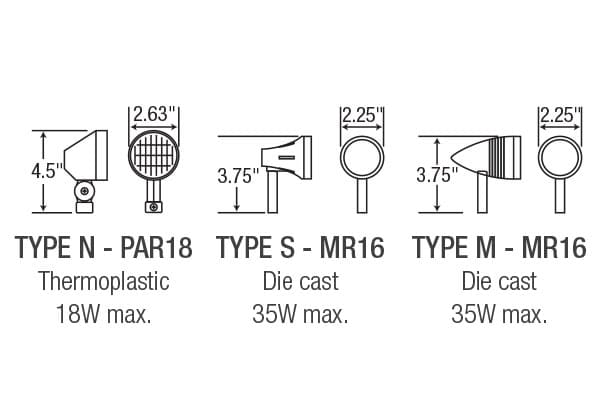

  • Lamp heads include PAR18 small style and die cast metal MR16 type
  • 6VDC or 12VDC emergency power output versions (as specified)
  • Wattage capacities from 18 to 720 W
  • 30 Minutes emergency power duration standard
  • 120/347 VAC 60 Hz input, field selectable
  • High efficiency, rapid recovery, precision control charging system
  • Momentary push button test switch
  • Diagnostic/pilot LED for AC ON and CHARGE
  • Fully automatic, current limiter charger − Line latched, low voltage protection
  • Brownout and short circuit protection
  • Maintenance free, sealed lead acid battery
  • 18 Gauge Steel White powder coat finish standard
  • CSA Certified to C22.2 141-15
Quick Ship
CSA Registered
Link Compatible
Tungsten, LED, Quartz Halogen
Steel
Battery Units
Spec Sheet
Revit Files
Installation
IES Files
Voltage Drop
Emergency Lighting Spacing Guide
Emergency Lighting Options
