RMRNX

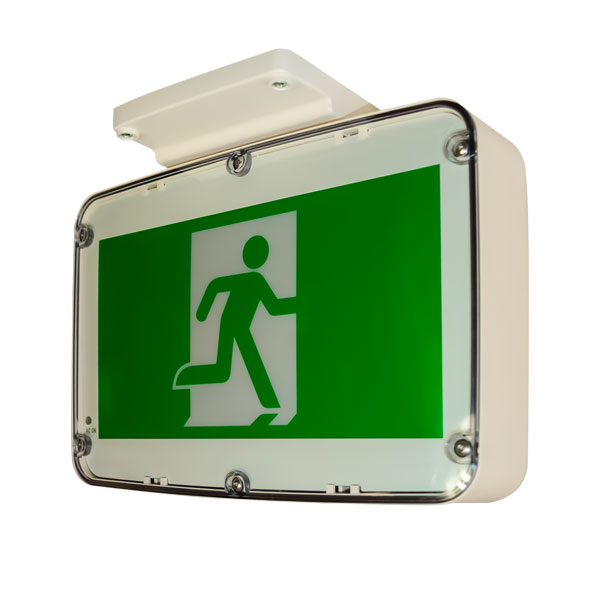

HAZARDOUS LOCATION RUNNING MAN
The RMRNX series for hazardous locations running man is designed to operate in extreme environments. The unit, designed using a polycarbonate housing, maintains its sealed interior with a continuous integral gasket. As well, LED pilot light and test switch are sealed type. Available in AC/DC and internally self-powered versions.
- LED ultra bright light source
- 120/277/347 VAC 60Hz Input, field selectable
- 1.9 W power consumption single or double face
- Emergency DC wattages as follows: 6 VDC = 0.9 W, 12 VDC = 0.9 W, 24 VDC = 0.9 W
- Reinforced polycarbonate
- Universal faces – Universal mounting : ceiling mount, wall mount, end mount
- Class I, div 2, groups A, B, C, D
- Class II, div 2, groups F, G
- Class III, div 2
Quick Ship
No
Mounting
Universal
Lamp Type / Light Source
LED
Casting/Housing Color
White,
Black
Environment
Wet,
Hazardous
Legend Type
Running Man
Material
Polycarbonate
Ratings
Class I Division 2,
IP66,
NSF,
NEMA 4X,
Class II Division 2,
Class III
Voltage
120-277/347 V
