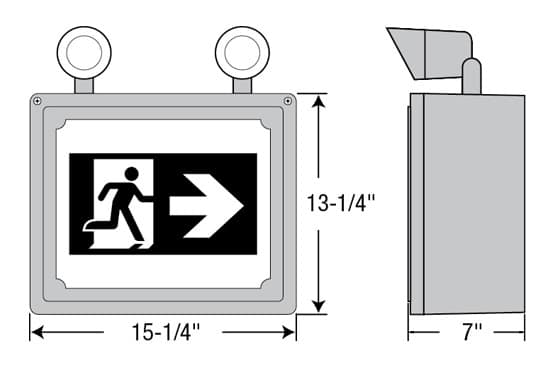

PRMH
NON-METALLIC HAZARDOUS LOCATION RUNNING MAN COMBO
The PRMH series of Class I, Division 2 rated running man combos is designed to perform in demanding hazardous applications. The unit maintains its sealed interior with a continuous integral gasket. As well LED pilot light and test switch are sealed type. The breather, pilot light and test switch have all been mounted into the bottom of the enclosure to allow for quick and simple visual inspection and maintenance testing from below.
120/347 VAC input field selectable1.9 W power consumption on AC input for LED exit portion of combination signLED Emergency DC wattages as follows: 6 VDC = 0.9 W; 12 VDC = 1.8 WMomentary push button test switchPilot LED for AC ON and CHARGEFully automatic, current limiter chargerBrownout and short circuit protectionMaintenance free, sealed lead acid batteryHeavy duty non-metallic construction in grey finish, with white faceplate standardCSA Certified to C22.2 137CSA Certified to C22.2 141-15CSA Certified to C860-11Class I, Division 2, Groups C and D
Lamp Type / Light Source
LED
Legend Type
Running Man
Product Type
Combos
