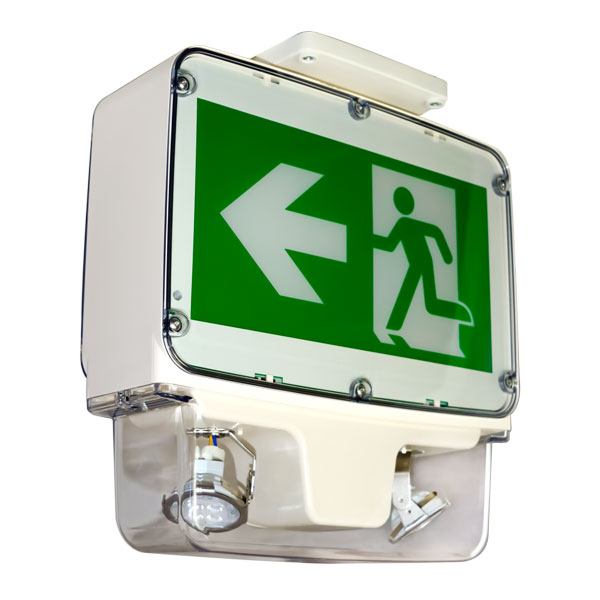

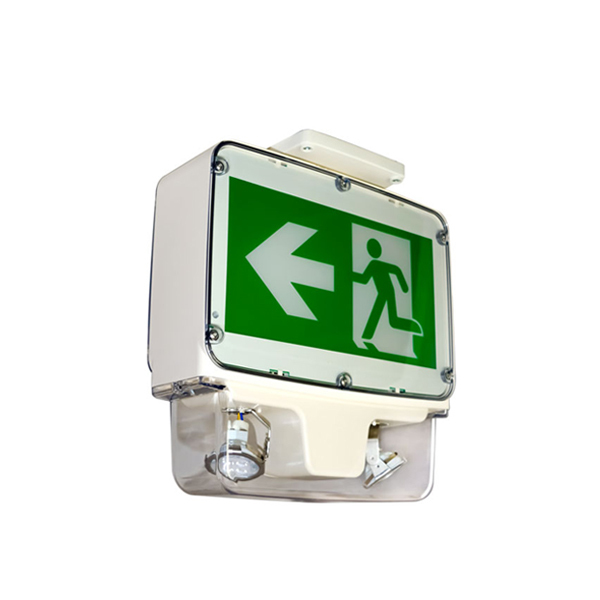

PRMRNX
HAZARDOUS LOCATION COMBO
The PRMRNX series of hazardous location combination running man exit signs is designed to operate in extreme environments. The PRMRNX series is designed using a polycarbonate housing. The housing features integral wall mounting points and a molded gasket that completely seals the housing from the elements.
- LED ultra bright light source
- 120/277/347 VAC 60Hz Input, field selectable
- Emergency DC wattages as follows: 6 VDC = 0.9 W, 12 VDC = 0.9 W, 24 VDC = 0.9 W
- Reinforced polycarbonate
- Universal faces – Universal mounting : ceiling mount, wall mount, end mount
- High efficiency, rapid recovery, precision control charging system
- Diagnostic/pilot LED for AC ON and CHARGE
- Class I, div 2, groups A, B, C, D
- Class II, div 2, groups F, G
- Class III, div 2
Quick Ship
No
Lamp Type / Light Source
LED
Casting/Housing Color
White,
Black
Environment
Wet,
Hazardous
Legend Type
Running Man
Lumen Output Range
301-400 Im,
401-500,
501-600,
601-700
Material
Polycarbonate
Number of Lamps
2
Ratings
Class I Division 2,
IP66,
NSF,
NEMA 4X,
Class II Division 2,
Class III
Voltage
6 V,
12 V
Wattage
6 W,
4 W,
7 W,
5 W
