FN

Fluorescent Vapor Tight High Bay, 4 and 6 Lamps, Specification Grade, 40°C, IP67, NSF, NEMA 4X

The wide profile vapor tight fluorescent high bay is our IP67, NSF gasketed enclosure for wet or dusty locations. Appropriate for those applications that may require: washability/hose down, complete containment of the lamps, the ability to withstand reduced temperatures and withstand moderate impact. Ideal for food processing facilities, commercial kitchens, breweries, industrial facilities, livestock containment buildings, parking garages, under awnings, laundries, utility tunnels and car washes.

Housing:

Gear trays are die-formed from cold-rolled steel with a minimum 87% total reflectance or achieve 94% reflectivity with our optional MIRO 4 reflector. There are 12 stainless steel latches provide durability and chemical resistance.  The clear lenses are made of 100% impact-resistant acrylic for maximum light transmission and longevity or UV stabilized Polycarbonate for temperature extremes and maximum impact resistance.

Mounting:

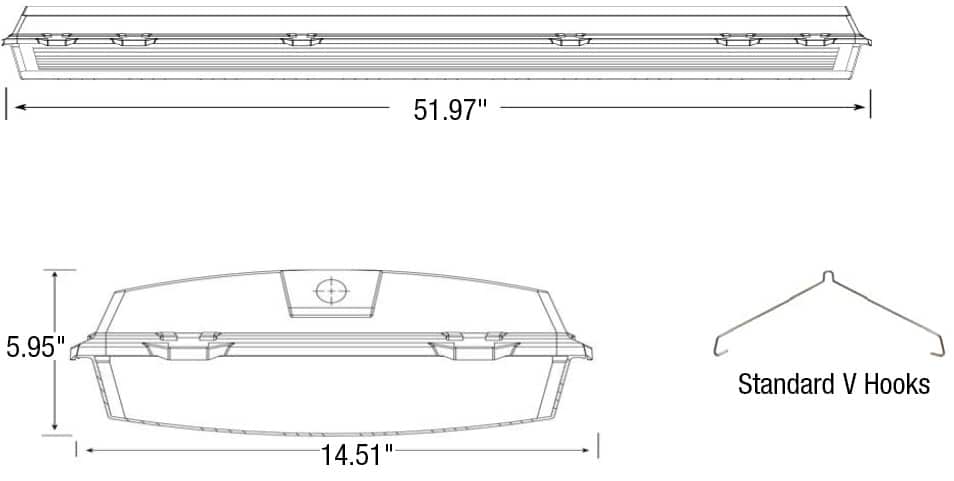

Easily mounted with V-hooks which come standard with the fixture. The stainless steel V-hooks with hook hangers are UL rated for 4 times fixture weight.

Information and Downloads

Document Title Download Email

Overview

  • ApplicationIndustrial, Commercial

  • MountingSurface, Suspended

  • Lamp Type / Light SourceFluorescent T5, Fluorescent T8, Fluorescent T5HO

  • Size52"

  • Number of Lamps4, 6

  • MaterialFiberglass

  • Casting/Housing ColorWhite

  • Wattage28 W, 32 W, 54 W

  • Voltage120 V, 120-277 V, 347 V

  • RatingsIP66, NSF, NEMA 4X, IP67

  • EnvironmentWet, Damp

  • Product TypeVapor Tight, High Bay
