VX4

VX4

4' Hazardous Location Fluorescent Vapor Tight, 2 and 3 Lamps, IP67, NSF, NEMA 4X, CLASS I, DIVISION II

The VX4 is our IP67, NSF gasketed 4 foot linear luminaire designed for use in hazardous locations when gases and liquids may be present. Acetylene, hydrogen, ether, hydrocarbons, fuels, solvents etc. that are not normally present in an explosive concentration (but may accidently exist).

Housing:

The housing is constructed from a one piece reinforced fiberglass, a closed cell, high temperature poured in place gasket and polycarbonate latches seal the enclosure from most hostile environments.

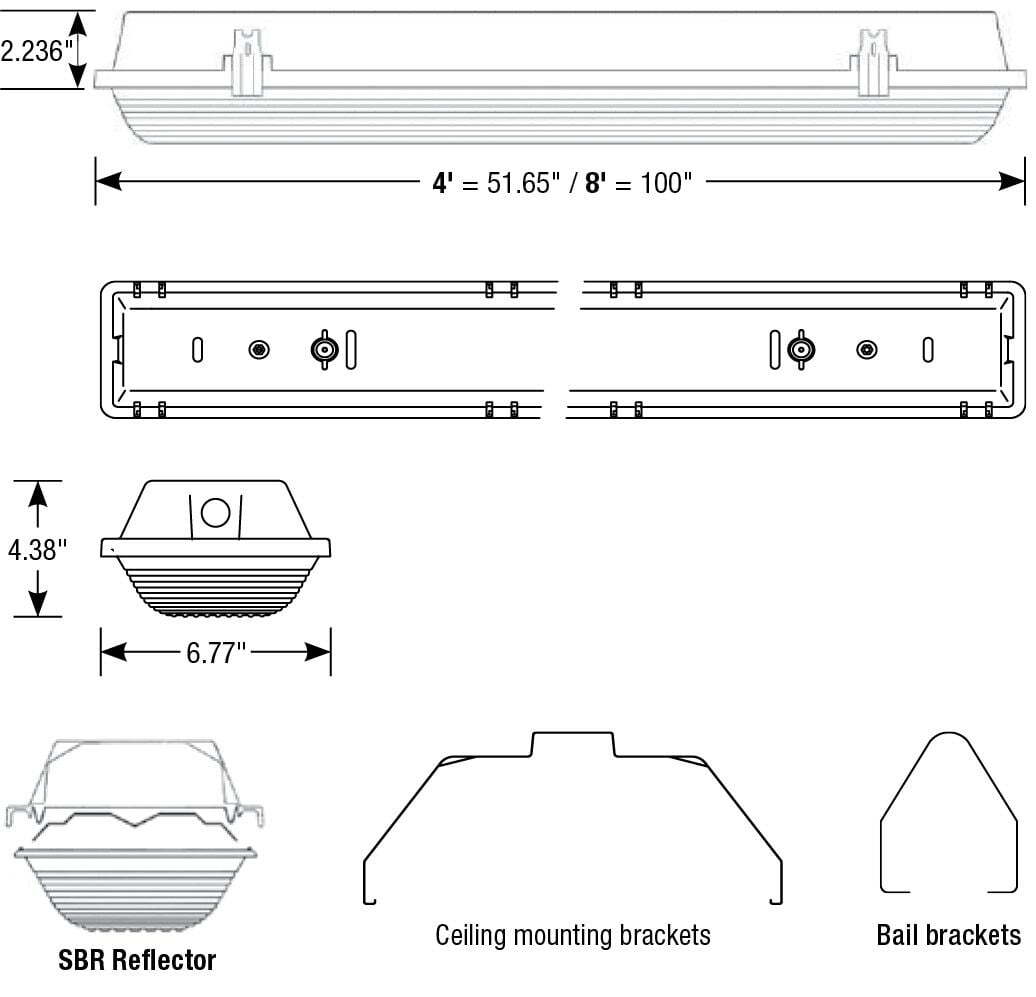

Mounting:

Ceiling mounting brackets and mounting bail brackets for suspended mount included.

Information and Downloads

Document Title Download Email

Overview

  • ApplicationCommercial, Hazardous, Industrial

  • MountingSuspended, Surface

  • Lamp Type / Light SourceFluorescent T5HO, Fluorescent T8, Fluorescent T5

  • Size48"

  • Number of Lamps3, 2

  • MaterialFiberglass

  • Casting/Housing ColorWhite

  • Wattage28 W, 32 W, 54 W

  • Voltage120 V, 120-277 V, 347 V

  • RatingsClass III Division 1 & 2, Class I Division 2, IP67, NEMA 4X, NSF

  • EnvironmentHazardous, Wet

  • Product TypeVapor Tight
