VN4

4' Vapor Tight Linear Fluorescent, 2 or 3 Lamps, IP67, NSF, NEMA 4X

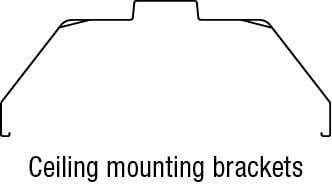

The VN4 is an IP67, NSF rated sealed 4 foot linear luminaire for use in for both indoor and outdoor applications. Ideal for food processing and beverage plants, refrigerated storage, schools, parking garages, etc. Housing: The housing is constructed from a one piece glass reinforced white fiberglass.  A closed cell, high temperature poured in place gasket and polycarbonate latches seal the enclosures from most hostile environments.  Clear lens standard. Mounting:  Ceiling mounting brackets included for ceiling or horizontal wall mounting.   Bail brackets included for suspended ceiling mount available.
IP66 - FR
IP67 - FR
Wet location
C CSA US - FR
NSF - FR
Industrial, Commercial
Surface, Suspended
Fluorescent T5, Fluorescent T8, Fluorescent T5HO
48"
White
Wet
Fiberglass
2, 3
Vapor Tight
IP66, NSF, NEMA 4X, IP67
120 V, 120-277 V, 347 V
54 W, 28 W, 32 W
Spec Sheet
Installation
IES Files
Occupancy Sensor Selection guide
Chemical Resistance of Plastics
Chemical Resistance of Fiberglass Polyester
