VN4-L GEN. 2

VN4-L GEN. 2

4' SPECIFICATION GRADE LED VAPOR TIGHT LUMINAIRE WITH NSF, NEMA 4X AND IP67

The VN4-L is an IP66, IP67, NSF rated sealed 4 foot linear luminaire for use in for both indoor and outdoor applications. Ideal for food processing and beverage plants, refrigerated storage, schools, parking garages.

This luminaire meets BC Hydro requirements, thus providing considerable utility rebates in British Columbia.

Information and Downloads

Document Title Download Email

Overview

  • ApplicationIndustrial, Commercial

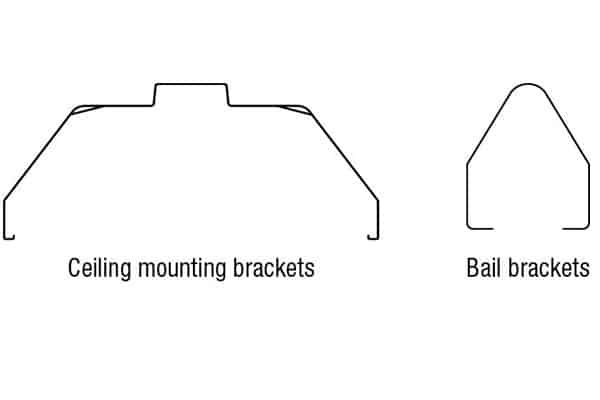

  • MountingSurface, Suspended

  • Lamp Type / Light SourceLED

  • Size48"

  • MaterialFiberglass

  • Casting/Housing ColorWhite

  • DimmableYes

  • Wattage62 W, 93 W, 27 W, 37 W, 50 W

  • Voltage120 V, 120-277 V, 347 V

  • Color Temperature3000K, 3500K, 4000K, 5000K

  • Lumen output range3 001-4 000, 4 001-6 000, 6 001-8 000, 8 001-10 000, 10 001-12 000, 12 001-14 000

  • QualificationDLC Premium

  • RatingsIP66, NSF, NEMA 4X, IP67

  • EnvironmentWet

  • Product TypeVapor Tight

  • Dimming0-10V

  • CRI80, 90
