RMSLC

UNIBODY STEEL RUNNING MAN COMBO

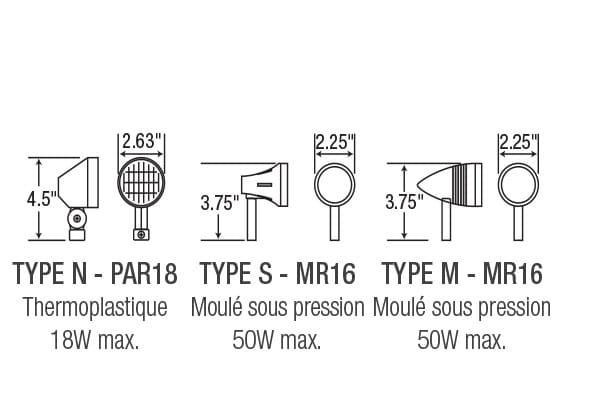

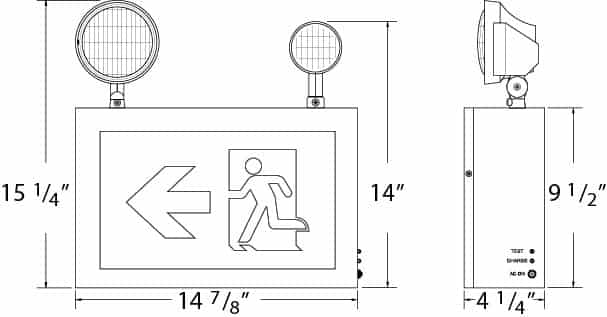

The RMSLC series of commercial combination steel sign and battery unit feature a single “unibody” steel construction that allows for large battery capacities. Two PAR18 small style, top mounted heads are standard, MR16 type are optional. Available with either 6VDC, 12VDC or 24VDC emergency backup power.

  • 120/347 VAC 60 input, field selectable
  • 1.9 W power consumption on AC input for LED exit portion of combination sign
  • LED Emergency DC wattages as follows: 6 VDC = 0.9 W; 12 VDC = 1.8 W
  • Momentary push button test switch
  • Pilot LED for AC ON and CHARGE
  • Fully automatic, current limited charger
  • Brownout and short circuit protection
  • Maintenance free, sealed lead acid battery
  • 20 Gauge Steel white powder coat finish
  • CSA Certified to C22.2 141-15
  • CSA Certified to C860-11

Information and Downloads

Document Title Download Email

Overview

  • Lamp Type / Light SourceLED

  • MaterialSteel

  • Legend TypeRunning Man

  • Product compatibilityLINK
