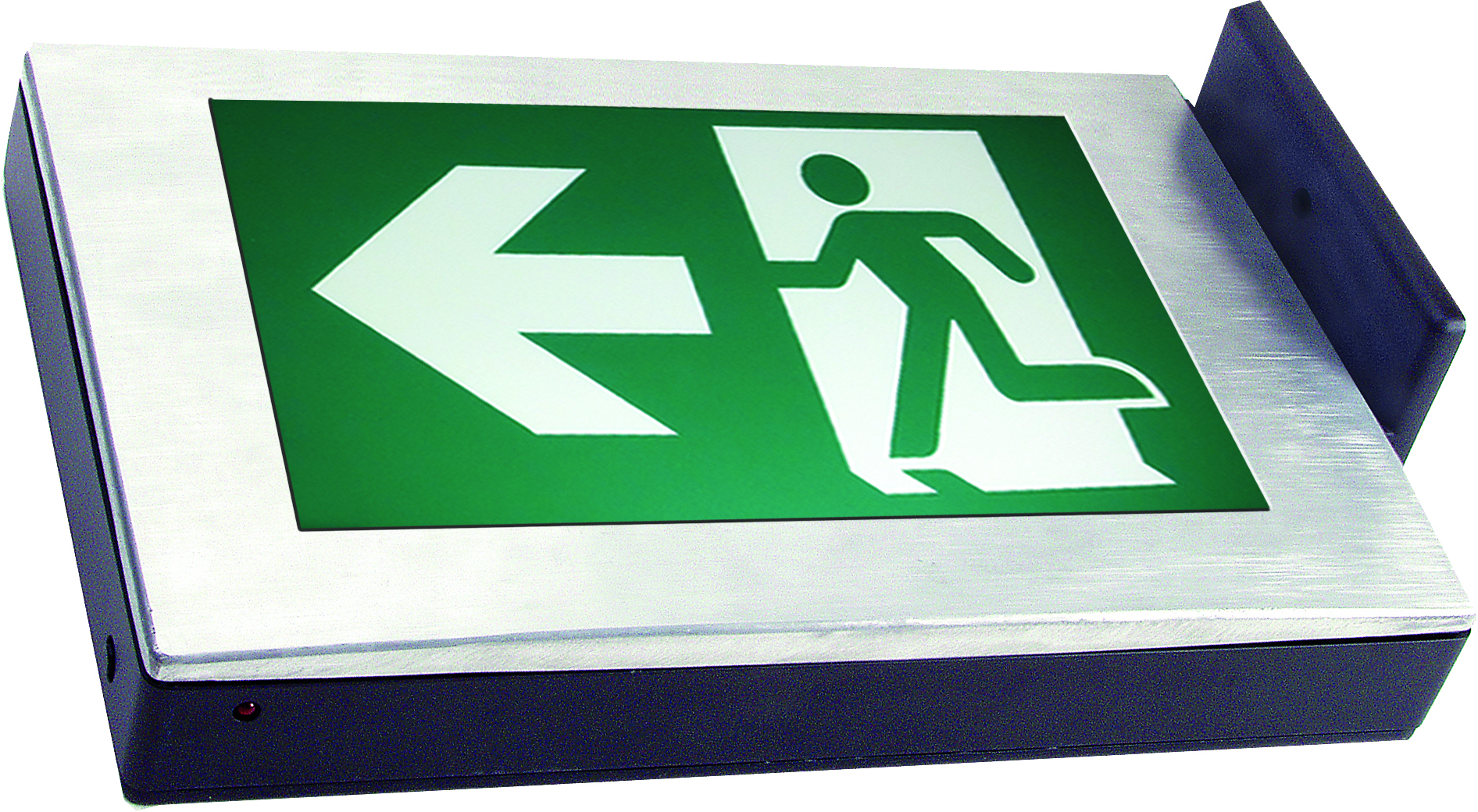

RMQ series of commercial decorative die cast aluminum exit signs are the perfect match of aesthetics and durability. The die cast construction produces an extremely rigid housing while the highly machined brushed housing lends a high-end look. The series has been designed to meet the C860 standard using energy efficient LEDs, with energy consumption as low as 1.8W AC. Faceplates are hinged and snap into place for ease of installation.

  • LED ultra bright light source
  • 120/277/347 VAC Input, field selectable
  • 1.9 W power consumption single or double face
  • Emergency DC wattages as follows: 6 VDC = 0.9 W, 12 VDC = 0.9 W, 24 VDC = 0.9 W
  • Die cast aluminum
  • Universal faces – Universal mounting : ceiling mount, wall mount, end mount
  • White powder coat finish standard, other other colours available including custom colour matching & brushed aluminum
  • CSA CERTIFIED to C22.2-141-15, C860

Information and Downloads

Document Title Download Email


  • Lamp Type / Light SourceLED

  • MaterialDie cast aluminum

  • Legend TypeRunning Man

  • Cerebrum compatibleYes
