Aluminum LED Running Man Combo, NBC2010 Compliant

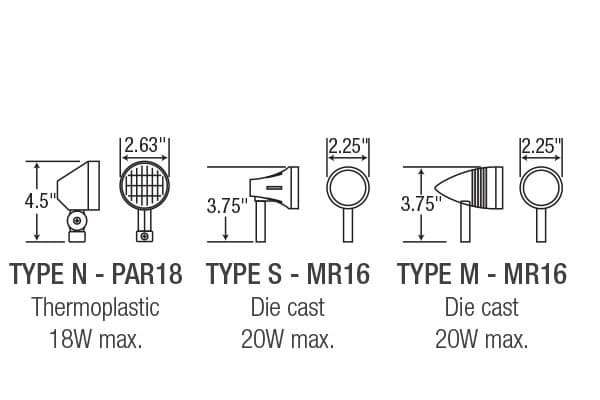

The PRMXL series of commercial combination extruded signs and battery units feature a fully modern appearance. The extruded aluminum design provides for a rigid, durable and lightweight sign. Two PAR18 small style, front mounted heads are standard, MR16 type are optional. Available with either 6VDC or 12VDC.

  • 120/347 VAC field selectable, or 277 VAC
  • 1.9 W power consumption on AC input for LED exit portion of combination sign
  • LED Emergency DC wattages as follows: 6 VDC = 0.9 W; 12 VDC = 1.8 W
  • Momentary push button test switch
  • Pilot LED for AC ON and CHARGE
  • Fully automatic, current limiter charger
  • Brownout and short circuit protection
  • Maintenance free, sealed lead acid battery
  • Extruded Aluminum in white powder coat finish standard, other finishes and colours optional
  • CSA Certified to C22.2 141-15
  • CSA Certified to C860-11

Information and Downloads

Document Title Download Email


  • Lamp Type / Light SourceLED

  • MaterialExtruded aluminum

  • Product TypeCombos

  • Legend TypeRunning Man

  • Product compatibilityLINK
