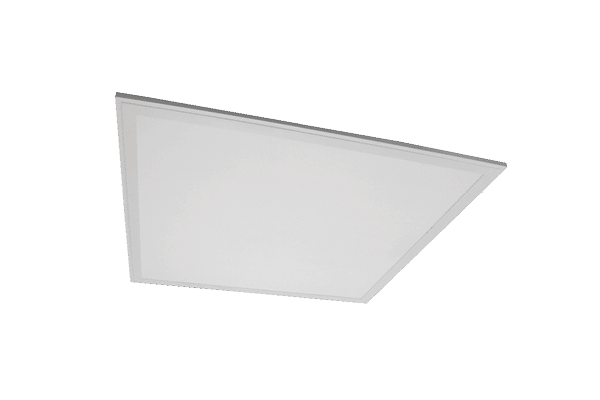

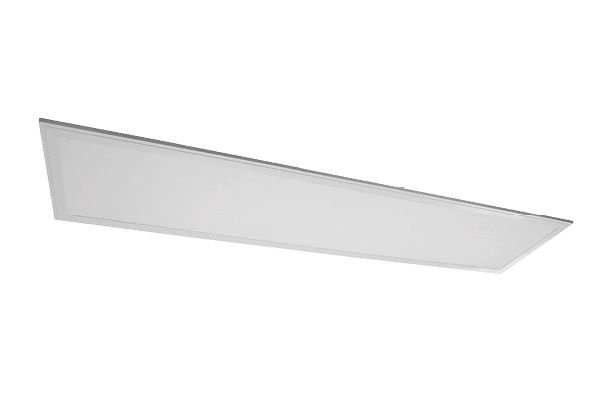

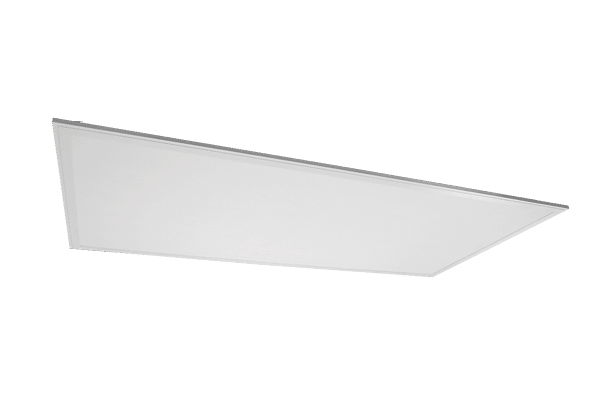

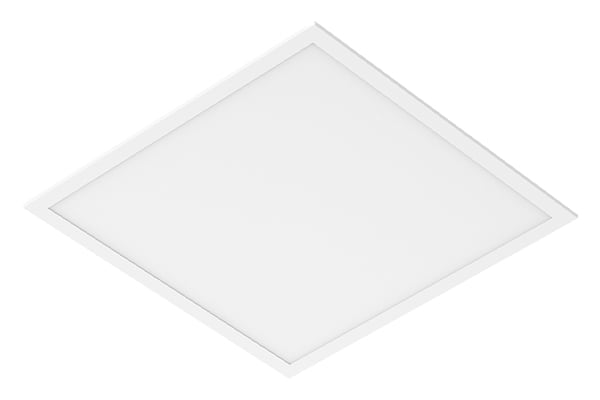

L3PNB
LED BACKLIT PANEL - 3 CCT and 3 Power Selectable

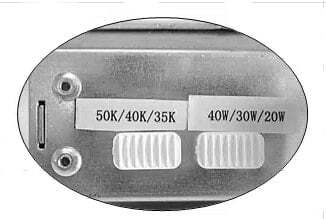

L3PNB LED panel lights utilize next-generation back-lit technology, ensuring high performance, superior uniformity, and reduced glare. Featuring a 120-347V driver and the versatility to change the color temperature and lumen output with a simple switch, the L3PNB series is the premier and cost-effective solution for reducing stocking inventory.

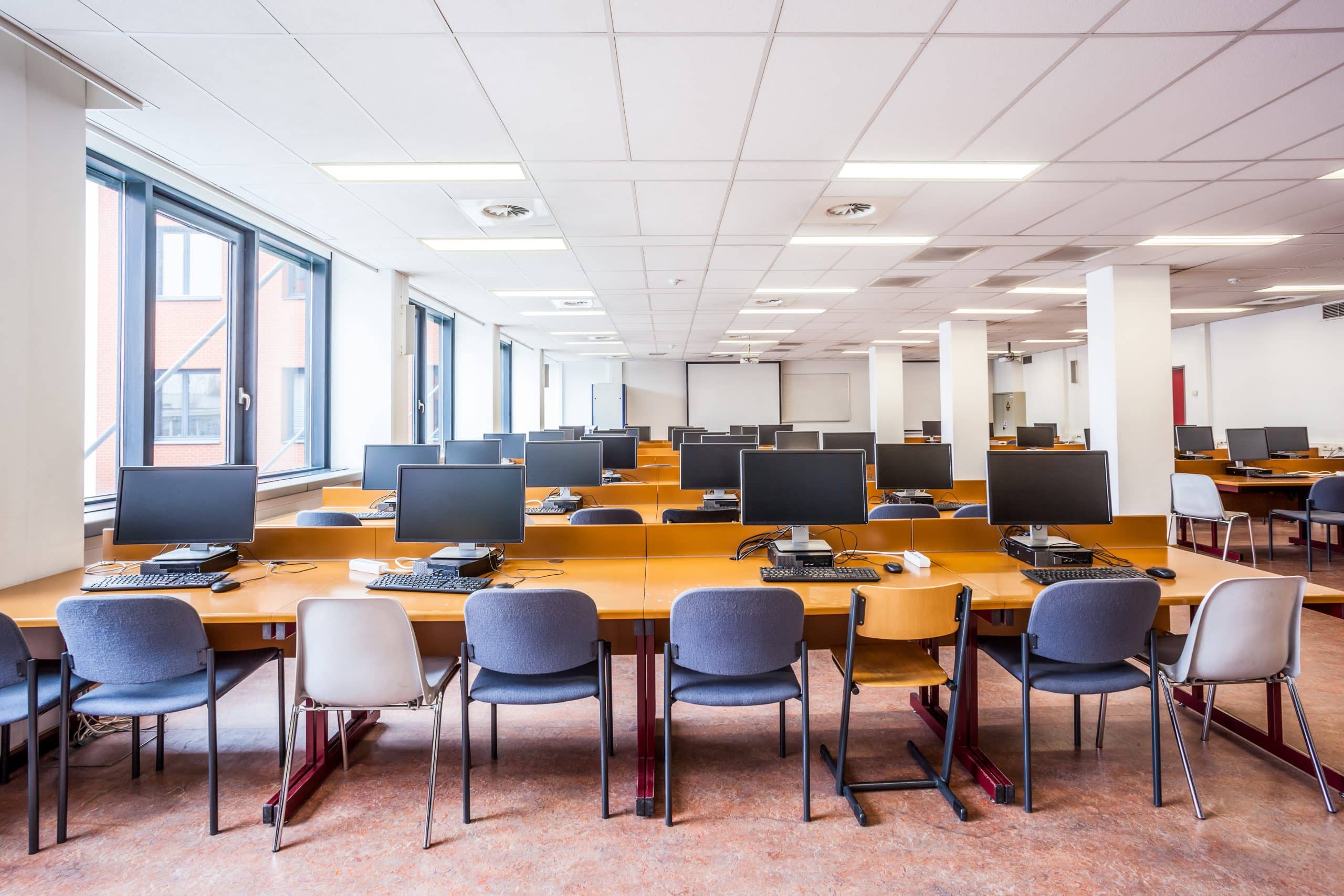

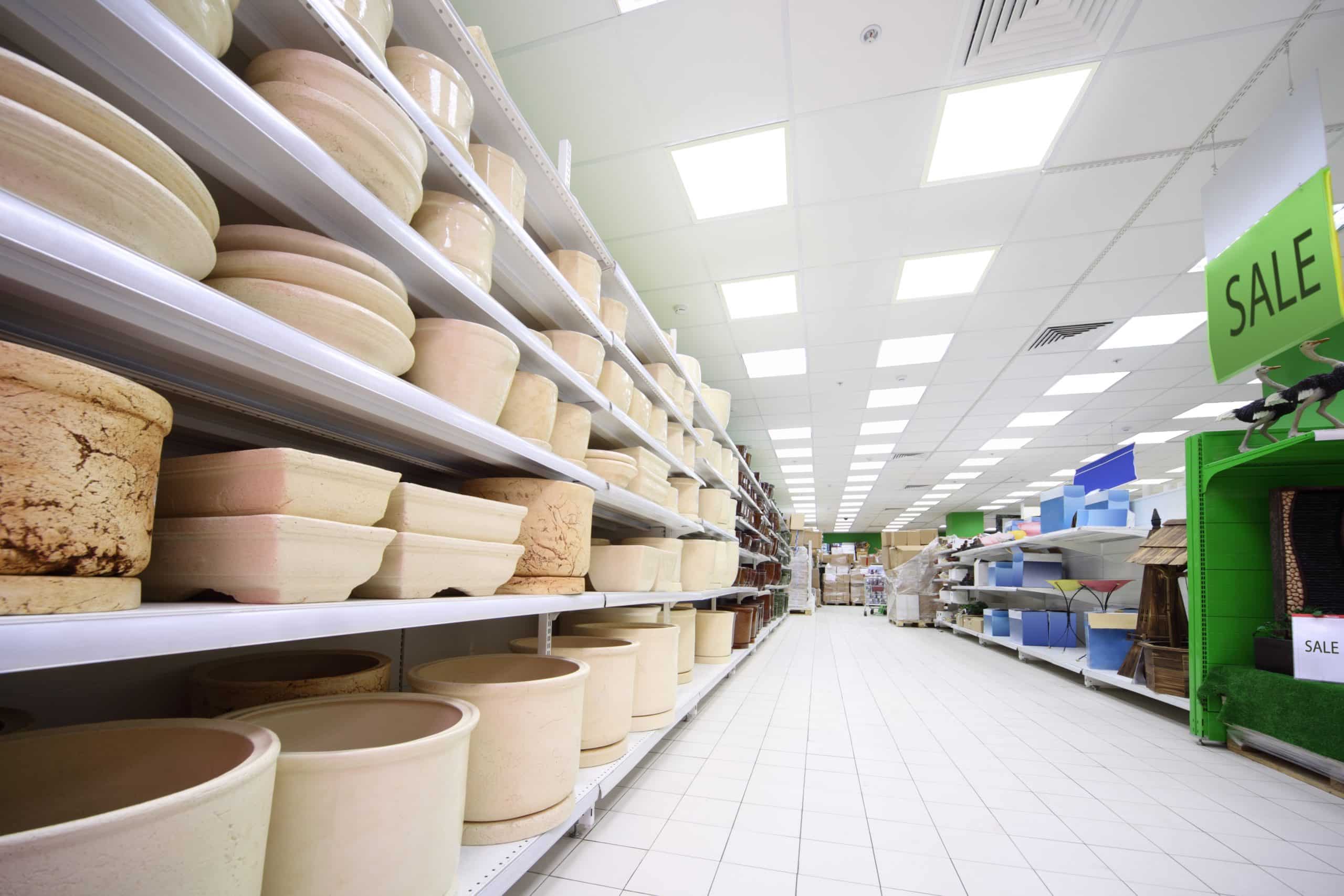

These commercial grade LED panels lights are the ideal replacement for traditional fluorescent fixtures in offices, schools, and commercial buildings.










Quick Ship
Yes
Mounting
Surface,
Suspended,
Recessed
Lamp Type / Light Source
LED
Size

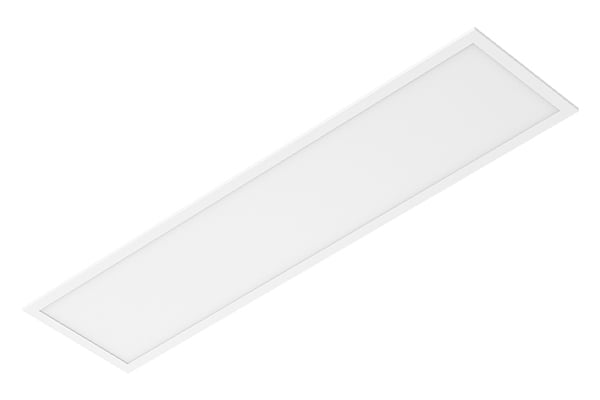

1'x4',
2'x2',

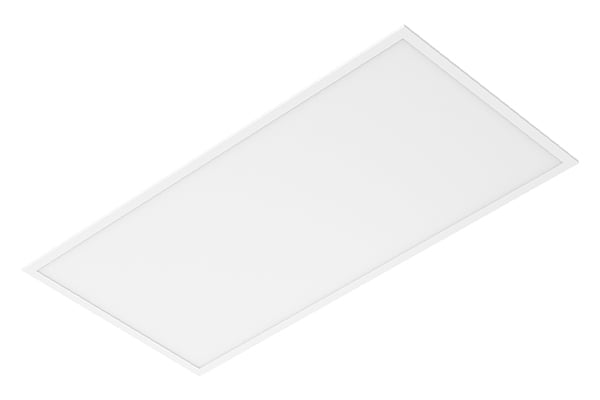

2'x4'
Casting/Housing Color
White
Color Temperature
4000K,
3 500/4 000/5 000 K
Dimmable
Yes
Dimming
0-10V
Environment
Damp
Lumen Output Range
3 001-4 000,
4 001-6 000,
2 001-3 000
Material
Metal
Qualification
DLC Standard
Voltage
120-347 V
Wattage
40 W,
20/30/40 W,
30/40/50 W,
50 W
Applications
