CDHL2 – HAZARDOUS LOCATION LINEAR LUMINAIRES

CDHL2 – HAZARDOUS LOCATION LINEAR LUMINAIRES

CLASS I, DIVISION 2, GROUPS A, B, C, D

The CDHL2 LED linears are specifically engineered for use in hazardous environments containing flammable vapors or gases. This series is designed for locations prone to vibrations, as well as NEMA 4X environments characterized by exposure to wind, water, snow, or high ambient temperatures.

Applications

Information and Downloads

Document Title Download Email

Overview

  • ApplicationIndustrial, Commercial, Hazardous

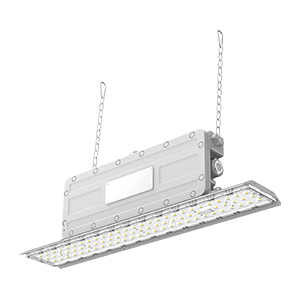

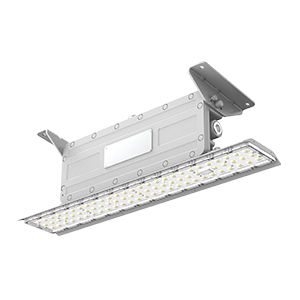

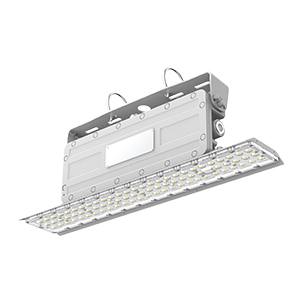

  • MountingPendant, Ceiling mount, Wall mount, Pole mount, Surface

  • Lamp Type / Light SourceLED

  • MaterialDie cast aluminum

  • Casting/Housing ColorGrey

  • DimmableYes

  • Wattage40 W, 80 W, 120 W

  • Voltage277-480 V, 120-277 V

  • Color Temperature5700K, 2700K, 3000K, 4000K, 5000K, 6500K

  • Lumen output range6 001-8 000, 12 001-14 000, 18 001-24 000

  • RatingsIP66, NEMA 4X, Class I Division 2

  • EnvironmentWet

  • Product TypeLinear
