FLL

HIGH POWER FLOOD AND AREA LIGHTS, CCT AND POWER SELECTABLE WITH INTERCHANGEABLE OPTICS

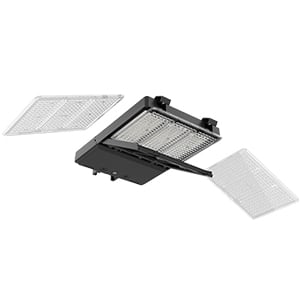

These high power area lights are designed to ease the installation with the slide-on feature and to facilitate the interchangeability of the optic to suits different applications. The color temperature and the power can be changed on site with the help of switches located on the underside of the fixture. For energy savings and enhanced safety, this product series with a 7 pin photocell receptacle for the ability to add a dusk till dawn photocell and includes a sensor adapter compatible with both smart and non-smart sensors. The FLL series is great for general lighting of grounds, storage yards, car dealerships, parking areas as well as flood lighting of signs and building facades.

Applications

Information and Downloads

Document Title Download Email

Overview

  • Quick shipYes

  • ApplicationIndustrial, Commercial

  • MountingWall mount, Pole mount, Trunnion / Yoke, Slipfitter

  • Lamp Type / Light SourceLED

  • ShapeRectangular

  • Casting/Housing ColorBlack, Bronze

  • Light DistributionType II, Type III, Type IV, Type V, NEMA 7HX7V (Standard)

  • DimmableYes

  • Wattage60/100/150, 160/200/240/300, 350/400/450

  • Voltage120-347 V

  • Color Temperature3 000/4 000/5 000 K

  • Lumen output range 8 001-10 0003,  10 001-12 0002,  12 001-14 0002,  14 001-16 0002,  16 001-18 0002,  18 001-24 0002,  24 001-30 0001,  30 001-40 0001,  40 001+

  • RatingsIP65

  • EnvironmentWet
