CDL-L
LED Hazardous Location Linear Luminaire
The CDL-L Hazardous Location LED linear luminaire is designed for installations where moisture, dirt, dust, corrosion and vibration may be present. The CDL-L is also NEC/CEC certified to be used in hazardous environments where there is presence of flammable vapors or gases.






Application
Industrial,
Commercial,
Hazardous

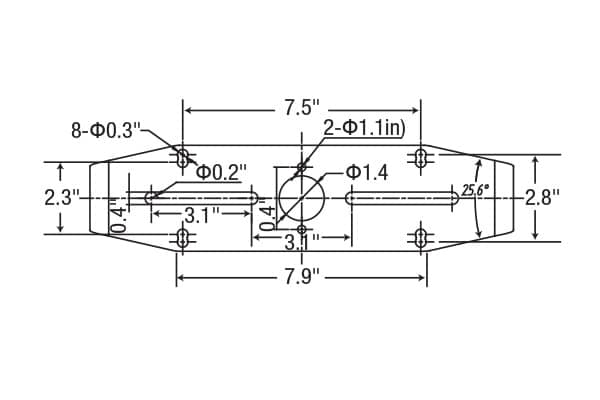

Mounting
Ceiling mount,
Wall mount,
Pole mount,
Pendant
Lamp Type / Light Source
LED

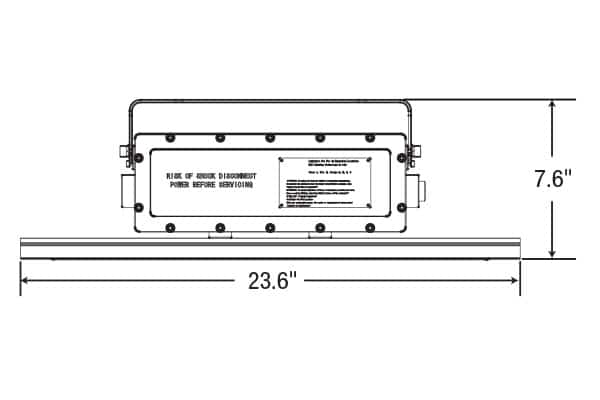

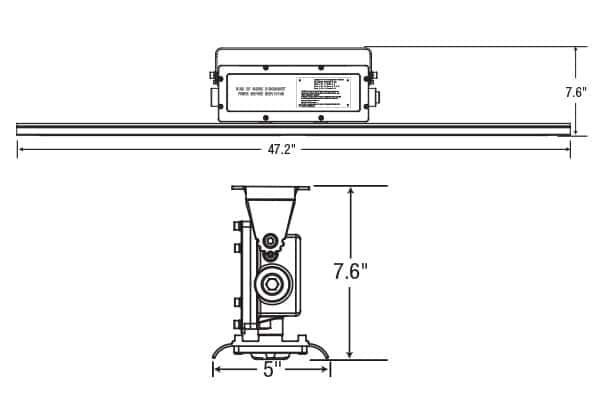

Size
23.6'',
47.2''
Shape
Linear
Casting/Housing Color
Grey
Wattage
40 W,
80 W
Voltage
120-277 V,
347 V
Color Temperature
4000K,
5000K,
3000K
Lumen Output Range
4 001-6 000,
6 001-8 000,
8 001-10 000,
10 001-12 000,
12 001-14 000,
14 001-16 000
Ratings
Class I Division 2,
Class II Division 1,
Class III
Environment
Wet,
Hazardous
Product Type
Linear
