VN8

VN8

8' Fluorescent Vapor Tight, 4 or 6 Lamps, IP67, NSF, NEMA 4X

The VN8 is an IP67, NSF rated sealed 8 feet linear luminaire for use in both indoor and outdoor applications. Ideal for food processing and beverage plants, refrigerated storage, schools, parking garages, etc.

Housing:

The housing is constructed from a one-piece reinforced white fiberglass.  A closed-cell, high temperature poured in place gasket and polycarbonate latches seal the enclosures from most hostile environments.  Clear lens standard.

Mounting:

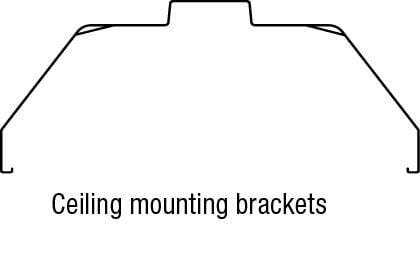

Ceiling mounting brackets included for ceiling or horizontal wall mounting.   Bail brackets included for suspended ceiling mount available.

Information and Downloads

Document Title Download Email

Overview

  • ApplicationIndustrial, Commercial

  • MountingSurface, Suspended

  • Lamp Type / Light SourceFluorescent T8, Fluorescent T5HO

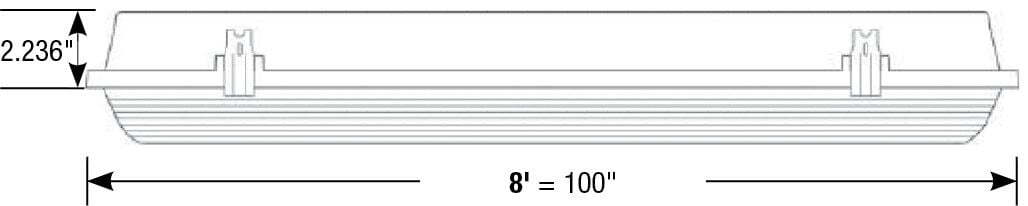

  • Size96"

  • Number of Lamps4, 6

  • MaterialFiberglass

  • Casting/Housing ColorWhite

  • Wattage32 W, 54 W

  • Voltage120 V, 120-277 V, 347 V

  • RatingsIP66, NSF, NEMA 4X, IP67

  • EnvironmentWet

  • Product TypeVapor Tight
