SLSOR

STEEL CONSTRUCTION T-BAR BATTERY UNIT

The SLSOR series of commercial steel T-bar ceiling battery units is designed to blend seamlessly into modern decors. The cabinet, which has been designed to fit into common 2″x4″ or 2″x2″ grid type suspended ceilings, mounts above the suspended ceiling, leaving only the trim plate visible.

Units can be fitted with a wide range of lamp head types and options, including auto-testing self-diagnostics and remote testing.

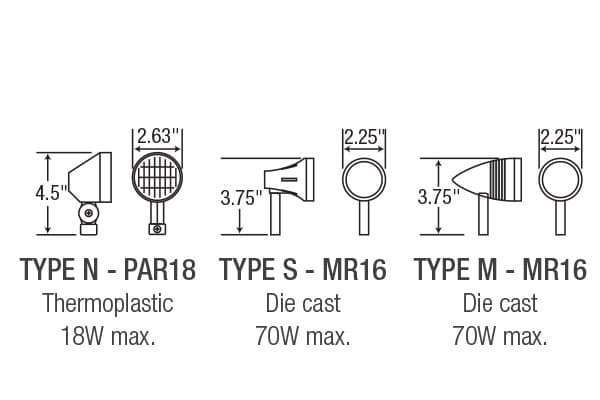

  • Lamp heads include PAR18 small style and die cast metal MR16 type
  • 6VDC, 12VDC or 24VDC emergency power output versions (as specified)
  • Wattage capacities from 36 to 320W
  • 30 Minutes emergency power duration standard
  • 120/347 VAC 60 Hz input, field selectable
  • High efficiency, rapid recovery, precision control charging system
  • Momentary push button test switch
  • Diagnostic/pilot LED for AC ON and CHARGE
  • Fully automatic, current limited charger − Line latched, low voltage protection
  • Brownout and short circuit protection
  • Maintenance free, sealed lead acid battery
  • White thermoplastic is standard
  • CSA logo meets C22.2 141-15

Information and Downloads

Document Title Download Email

Overview

  • Lamp Type / Light SourceLED, Quartz Halogen, Quartz Sealed Beam, Tungsten, Tungsten Sealed Beam

  • MaterialSteel

  • Product TypeBattery Units
