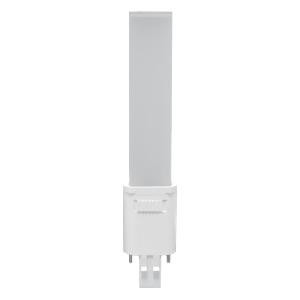

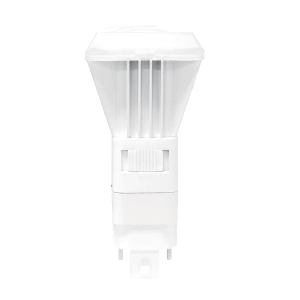

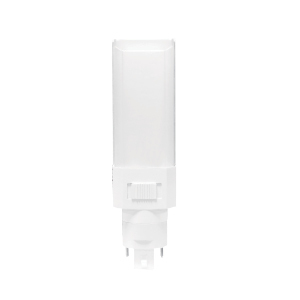

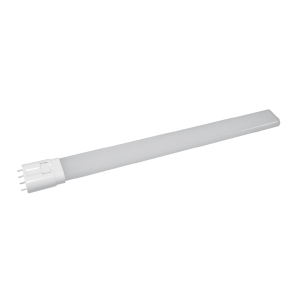

PL Lamps
Available in 2-pin and 4-pin, as well as in horizontal and vertical models. Replace 13/40W traditional using only 6/19W LEDs with 3 & 5 CCT selectable options.
The ideal solution to reduce inventory when replacing plug-in compact fluorescent lamps and are just as easy to install. These LED lamps are available in 2-pin and 4-pin, as well as in horizontal and vertical models. They are perfect for use in commercial buildings, hotels and offices by providing an eco-friendly and cost saving alternative to any ceiling fixture, recessed can, downlight or sconce.
Base
G24D,
G24Q,
GX23,
2G11
Brand
Standard
Color Temperature
2 700/3 000/3 500 K,
3 000/3 500/4 000 K,
3 000/4 000/5 000 K,
3 500/4 000/5 000 K,
2 700/3 000/3 500/4 000/5 000 K
CRI
83
Environment
Damp
Installation Method
Ballast Compatible,
Ballast Bypass
Lumens (Lm)
600/650/625,
975/1075/1050,
550/575/600/625/625,
2 650/2 750/2 700,
615/675/650,
1 025/1 100/1 050
Maximum Overall Length MOL
119 mm (4 3/4 in),
139 mm (5 1/2 in),
181 mm (7 1/8 in),
132 mm (5 1/4 in),
150 mm (5 7/8 in),
146 mm (5 3/4 in),
570 mm (22 1/2 in)
Safety Coating
No
Shape
PLL,
PL,
PL Horizontal
Voltage
120-277/347 VAC,
120-277 VAC
Wattage
9 W,
6 W,
19 W,
8 W
Applications
