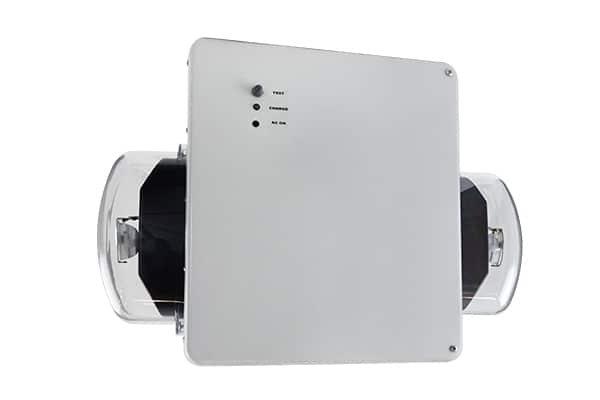

NOAH – SLBN

WET LOCATION POLYCARBONATE BATTERY UNIT

The SLBN series of battery units is designed to operate in the most extreme environments. The unit, designed using a polycarbonate housing, maintains its sealed interior with a continuous integral gasket. The SLBN series is available in 6VDC and 12VDC versions in 36W, 72W, 100W or 130W wattage capacity for a minimum of 30 minutes in emergency mode. Autotest feature is standard.

  • 120/277/347 VAC 60 Hz input, field selectable
  • High efficiency, rapid recovery, precision control charging system
  • Momentary push button test switch
  • Diagnostic/pilot LED for AC ON and CHARGE
  • Fully automatic, current limiter charger − Line latched, low voltage protection
  • Brownout and short circuit protection
  • Maintenance free, sealed lead acid battery
  • Black or white polycarbonate housing
  • CSA Certified to C22.2 141-15
  • CSA Certified type 2 ,3, 3R, 4, 4X,5, 12 or 12K
  • CSA Certified to NSF 2

Information and Downloads

Document Title Download Email

Overview

  • Lamp Type / Light SourceLED, Quartz Halogen

  • MaterialPolycarbonate

  • RatingsNSF, NEMA 4X

  • EnvironmentWet
